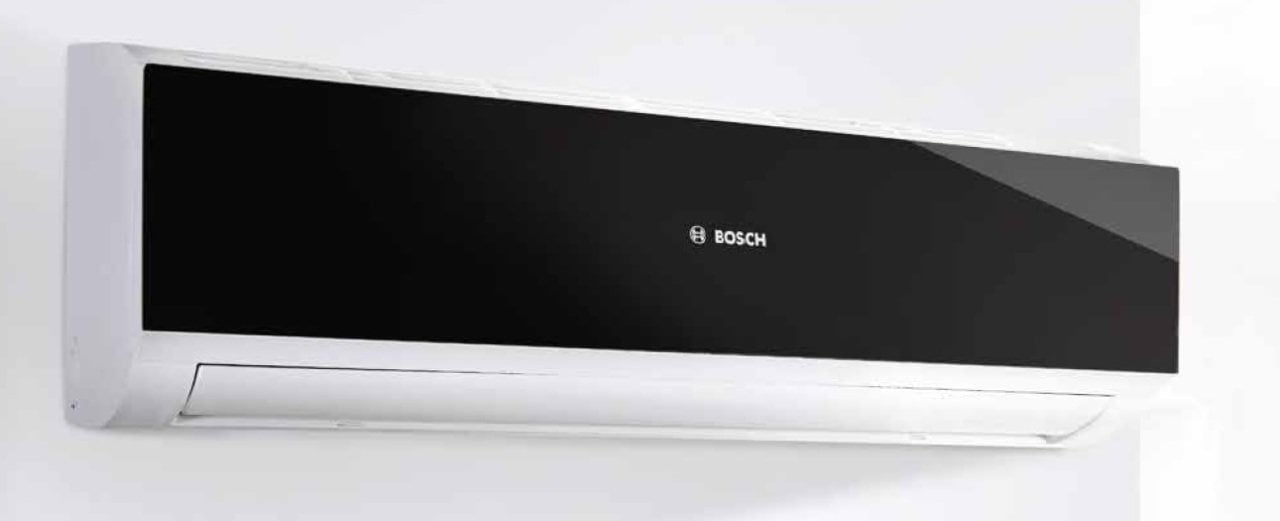

ASI/O18XB30U-18000 BTU A++ İNVERTER KLİMA-R32
|
BOSCH |
B1ZMIA18505 |
||
|
Power supply |
Ph-V-Hz |
220-240V,1Ph,50/60Hz |
|
|
Rated Cooling |
Capacity |
Btu/h |
18000(6200~20900) |
|
|
|
kW/h |
5275(1817-6125) |
|
Cooling Power input |
|
W |
1643(140~2360) |
|
Cooling Current |
|
A |
7.14(0.61~10.26) |
|
Rated Heating |
Capacity |
Btu/h |
19000(4700~23000) |
|
|
|
kW/h |
5569(1377-6741) |
|
Heating Power input |
|
W |
1586(200~2410) |
|
Heating Current |
|
A |
6.90(0.87~10.48) |
|
Seasonal Cooling |
Pdesignc |
kW |
5,3 |
|
SEER |
W/W |
6,7 |
|
|
Energy Efficiency Class |
|
A++ |
|
|
Heating(Average ) |
Pdesignh |
kW |
4,1 |
|
SCOP |
W/W |
4,1 |
|
|
Energy Efficiency Class |
|
A+ |
|
|
Tbiv |
℃ |
-7 |
|
|
Tol |
℃ |
-15 |
|
|
Moisture Removal |
L/h |
|
|
|
Max. input consumption |
W |
3150 |
|
|
Max. current |
A |
13 |
|
|
Starting current |
A |
25 |
|
|
Compressor |
Model |
|
ASN140D21UFZ |
|
Type |
|
ROTARY |
|
|
Brand |
|
GMCC |
|
|
Capacity |
Btu/h |
4225 |
|
|
Input |
W |
1085 |
|
|
Rated current(RLA) |
A |
7.58 |
|
|
Locked rotor Amp(LRA) |
A |
25 |
|
|
Thermal protector |
|
|
|
|
Thermal protector position |
|
INTERNAL |
|
|
Capacitor |
uF |
|
|
|
Refrigerant oil/oil charge |
ml |
VG74 440 |
|
|
Indoor fan motor |
Model |
|
ZKFP-30-8-3 |
|
Output |
W |
36.0 |
|
|
Capacitor |
uF |
/ |
|
|
Speed(Hi/Mi/Lo) |
r/min |
1130 / 900 / 800 |
|
|
Indoor coil |
a.Number of rows |
|
2.0 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
|
|
c.Fin spacing |
mm |
1.2 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminium |
|
|
e.Tube outside dia.and type |
mm |
Φ7,innergroove tube |
|
|
f.Coil length x height x width |
mm |
750x294x26.74 |
|
|
g.Number of circuits |
|
3 |
|
|
Indoor air flow (Hi/Mi/Lo) |
m3/h |
840/680/540 |
|
|
Indoor sound pressure level (Hi/Mi/Lo/Si) |
dB(A) |
42.5/37/33/23.5 |
|
|
Indoor sound power level (Hi) |
dB(A) |
55 |
|
|
Indoor unit |
Dimension(W*D*H) |
mm |
957x213x302 |
|
Packing (W*D*H) |
mm |
1035x295x380 |
|
|
Net/Gross weight |
Kg |
10.5/13.6 |
|
|
Outdoor fan motor |
Model |
|
ZKFN-40-8-1L-5 |
|
Output |
W |
40.0 |
|
|
Capacitor |
uF |
0 |
|
|
Speed |
r/min |
980/850/800/750/700 |
|
|
Outdoor coil |
a.Number of rows |
|
2.0 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
21X13.37 |
|
|
c.Fin spacing |
mm |
1.2 |
|
|
d.Fin type (code) |
|
HYDROPHILIC ALUMINIUM |
|
|
e.Tube outside dia.and type |
mm |
Φ7,innergroove tube |
|
|
f.Coil length x height x width |
mm |
860x504x26.74 |
|
|
g.Number of circuits |
|
4 |
|
|
Outdoor air flow |
m3/h |
2200 |
|
|
Outdoor sound pressure level |
dB(A) |
55 |
|
|
Outdoor sound power level |
dB(A) |
63 |
|
|
Outdoor unit |
Dimension(W*D*H) |
mm |
800x333x554 |
|
Packing (W*D*H) |
mm |
920x390x615 |
|
|
Net/Gross weight |
Kg |
35.1/37.9 |
|
|
Refrigerant |
Type |
|
R-32 |
|
GWP |
|
2088 |
|
|
Charged quantity |
Kg |
1,35 |
|
|
Design pressure |
MPa |
4.2/1.2 |
|
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
6.35mm(1/4in)/12.7mm(1/2in) |
|
Max. refrigerant pipe length |
m |
30 |
|
|
Max. difference in level |
m |
20 |
|
|
Connection wiring |
|
1.5x5(Optional) |
|
|
Plug type |
|
-- |
|
|
Thermostat type |
|
Remote Control |
|
|
Operation temperature |
Indoor(cooling/ heating) |
℃ |
17～32/0～30 |
|
Outdoor(cooling/heating) |
℃ |
-15～50/-25～30 |
|
