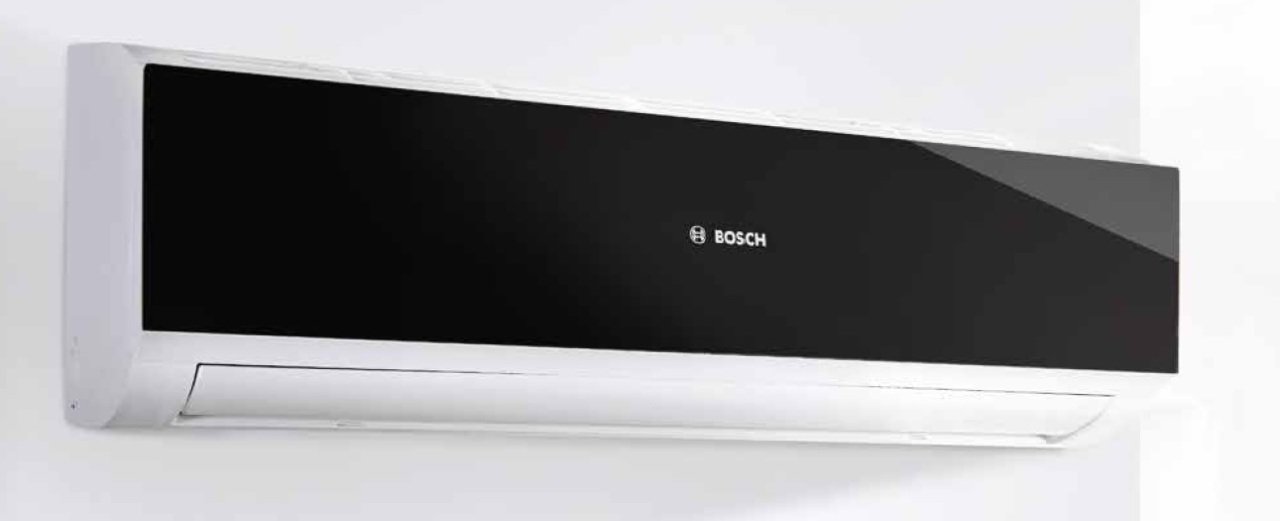

ASI/O24XB30U-24000 BTU A++ İNVERTER KLİMA-R 32
|
BOSCH |
B1ZMIA24505 |
||
|
Power supply |
Ph-V-Hz |
220-240V~ 50Hz, 1Ph |
|
|
Rated Cooling |
Capacity |
Btu/h |
24000（9100-26900） |
|
|
|
kW/h |
7034(2667-7884) |
|
Cooling Power input |
|
W |
240-3030 |
|
Cooling Current |
|
A |
1.0-13.2 |
|
Rated Heating |
Capacity |
Btu/h |
25000（5500-30000） |
|
|
|
kW/h |
7327(1612-8792) |
|
Heating Power input |
|
W |
260-3140 |
|
Heating Current |
|
A |
1.1-13.7 |
|
Seasonal Cooling |
Pdesignc |
kW |
7,0 |
|
SEER |
W/W |
6,1 |
|
|
Energy Efficiency Class |
|
A++ |
|
|
Heating(Average ) |
Pdesignh |
kW |
5,1 |
|
SCOP |
W/W |
4,0 |
|
|
Energy Efficiency Class |
|
A+ |
|
|
Tbiv |
℃ |
-10 |
|
|
Tol |
℃ |
-15 |
|
|
Moisture Removal |
L/h |
/ |
|
|
Max. input consumption |
W |
3700 |
|
|
Max. current |
A |
17 |
|
|
Starting current |
A |
---- |
|
|
Compressor |
Model |
|
ATF235D22UMT |
|
Type |
|
ROTARY |
|
|
Brand |
|
GMCC |
|
|
Capacity |
Btu/h |
24345 |
|
|
Input |
W |
1970 |
|
|
Rated current(RLA) |
A |
6,95 |
|
|
Locked rotor Amp(LRA) |
A |
---- |
|
|
Thermal protector |
|
---- |
|
|
Thermal protector position |
|
---- |
|
|
Capacitor |
uF |
---- |
|
|
Refrigerant oil/oil charge |
ml |
POE(VG74)/670 |
|
|
Indoor fan motor |
Model |
|
ZKFP-58-8-1 |
|
Output |
W |
58 |
|
|
Capacitor |
uF |
- - |
|
|
Speed(Hi/Mi/Lo) |
r/min |
1130 / 900 / 800 |
|
|
Indoor coil |
a.Number of rows |
|
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
|
|
c.Fin spacing |
mm |
1.3 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminium |
|
|
e.Tube outside dia.and type |
mm |
Φ7, innergroove tube |
|
|
f.Coil length x height x width |
mm |
780x336x26.74 |
|
|
g.Number of circuits |
|
4 |
|
|
Indoor air flow (Hi/Mi/Lo) |
m3/h |
980/800/640 |
|
|
Indoor sound pressure level (Hi/Mi/Lo/Si) |
dB(A) |
45/39/34/25 |
|
|
Indoor sound power level (Hi) |
dB(A) |
59 |
|
|
Indoor unit |
Dimension(W*D*H) |
mm |
1040×220×327 |
|
Packing (W*D*H) |
mm |
1120x405x310 |
|
|
Net/Gross weight |
Kg |
11.9/15.2 |
|
|
Outdoor fan motor |
Model |
|
ZKFN-50-8-2 |
|
Output |
W |
50 |
|
|
Capacitor |
uF |
- - |
|
|
Speed |
r/min |
810/750/600 |
|
|
Outdoor coil |
a.Number of rows |
|
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
25.4x22 |
|
|
c.Fin spacing |
mm |
1.4 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminium |
|
|
e.Tube outside dia.and type |
mm |
Φ9,innergroove tube |
|
|
f.Coil length x height x width |
mm |
730x660.4x44 |
|
|
g.Number of circuits |
|
4 |
|
|
Outdoor air flow |
m3/h |
2700 |
|
|
Outdoor sound pressure level |
dB(A) |
60 |
|
|
Outdoor sound power level |
dB(A) |
65 |
|
|
Outdoor unit |
Dimension(W*D*H) |
mm |
845x363x702 |
|
Packing (W*D*H) |
mm |
965x395x755 |
|
|
Net/Gross weight |
Kg |
48.4/51.6 |
|
|
Refrigerant |
Type |
|
R32 |
|
GWP |
|
2088 |
|
|
Charged quantity |
Kg |
1.85 |
|
|
Design pressure |
MPa |
4.2/1.5 |
|
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
Φ9.52/Φ15.9(3/8"/5/8") |
|
Max. refrigerant pipe length |
m |
Feb.00 |
|
|
Max. difference in level |
m |
Jan.00 |
|
|
Connection wiring |
|
2.5(Optional) |
|
|
Plug type |
|
-- |
|
|
Thermostat type |
|
Remote Control |
|
|
Operation temperature |
Indoor(cooling/ heating) |
℃ |
17～32/0～30 |
|
Outdoor(cooling/heating) |
℃ |
-15～50/-15～30 |
|
